How A Concrete Batching Plant Works?

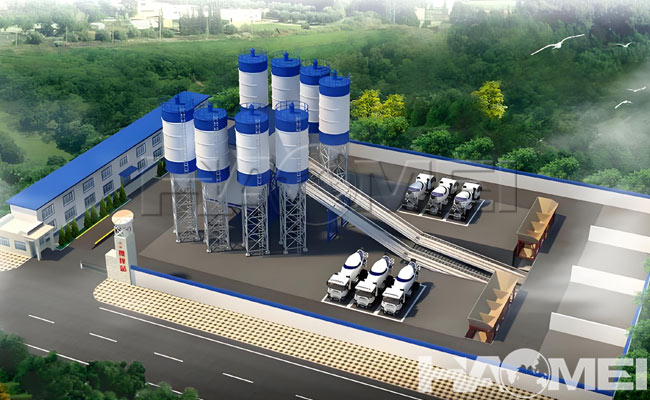

A concrete batching plant is not simply a "large concrete mixer," but a continuous production system integrating material storage, dynamic metering, forced mixing, and logic control. Concrete batching plant working principle can be summarized as follows: Using a PLC control system as the central hub, it precisely schedules each unit according to a preset formula, completing the entire automated process from raw material storage to finished product output, achieving a synchronous closed loop of material and information flow. Understanding its operational logic requires breaking it down layer by layer from four levels: material supply, dynamic metering, forced mixing, and intelligent scheduling.
Material storage and supply are the input ends of the entire system, following the basic principles of "categorized storage, closed conveying, and on-demand supply." Sand and gravel aggregates are stored in closed batching machine silos and discharged as needed through bottom arched gates or belt conveyors. Cement, fly ash, and other powdery materials are stored in closed steel silos and continuously and quantitatively conveyed by screw conveyors. Water and liquid admixtures are pumped from storage tanks to metering hoppers via pipelines. The supply of materials is not continuous and fully operational, but rather controlled by the metering system, employing a graded feeding mode of "fast feeding → slow feeding → inching replenishment," ensuring efficiency while reserving room for precision control. The anti-bridging device and level gauge that matched with the powder silo are auxiliary mechanisms to ensure continuous supply and prevent powder from bridging and interrupting the supply.
Dynamic metering is the core of the concrete batching plant's precision, and its principle goes far beyond simply "weighing." Aggregates are cumulatively metered using belt scales or statically metered using hopper scales, while powders and liquids are weighed using independent electronic hopper scales. The real technological difference lies in the dynamic drop compensation algorithm: there is a time difference between the material falling from the discharge port to the hopper. When the actual weight approaches the set value, the control system prematurely shuts off the feeding device, using the remaining material in the air to make up the final weight; this advance is the drop value. High-end equipment also has an automatic drop self-learning function, correcting the advance based on the actual error after each weighing, forming a closed-loop calibration, ensuring that the metering accuracy of powders is stable within ±1% and that of liquids within ±0.5%. The metering system also features automatic zero-point tracking to eliminate system errors caused by temperature drift and sensor creep.
Forced mixing is the core step in homogenizing the finished product. Mainstream twin-shaft mixers rely on convective shear mechanisms to achieve efficient mixing. Two parallel mixing shafts rotate in opposite directions, with staggered mixing blades on the shafts driving the material in three-dimensional motion—including radial tumbling along the cylinder, axial back-and-forth pushing, and mutual shearing and kneading between materials. This composite motion mode breaks through the material stratification dead zones of single-shaft mixing, achieving thorough and uniform mixing of cement, aggregates, water, and admixtures in a short time. Even special concrete with added fibers and silica fume can achieve good homogeneity. Longer mixing time is not necessarily better; it is set according to the formula grade and aggregate characteristics, precisely timed and controlled by the control system.
The intelligent control system is the central scheduling hub of the entire concrete batching plant, undertaking three major functions: formula management, timing control, and interlocking protection. After the operator selects the formula on the industrial control interface, the system automatically calls up the corresponding proportion parameters and triggers each process action sequentially according to predetermined logic, eliminating the need for manual step-by-step operation. The system also incorporates multiple safety interlocks: for example, material feeding is prohibited when the main unit is not started, the next batch of batching is prohibited if the unloading gate is not closed, and an automatic alarm and shutdown are triggered when metering exceeds tolerance, forming inherent safety protection. Some equipment is also equipped with a fault self-diagnosis module, which collects operating data such as current, pressure, and temperature in real time, and quickly locates the fault point when an anomaly occurs.
In short, the working essence of a concrete batching plant is a closed-loop system of "information-driven materials." Accuracy comes from the continuous calibration of the metering algorithm, efficiency comes from the time-sequential coordination of each unit, and stability comes from the full-link management of the control system. These three factors together determine the overall production capacity and finished product quality of the concrete batching plant.
A concrete batching plant is not simply a "large concrete mixer," but a continuous production system integrating material storage, dynamic metering, forced mixing, and logic control. Concrete batching plant working principle can be summarized as follows: Using a PLC control system as the central hub, it precisely schedules each unit according to a preset formula, completing the entire automated process from raw material storage to finished product output, achieving a synchronous closed loop of material and information flow. Understanding its operational logic requires breaking it down layer by layer from four levels: material supply, dynamic metering, forced mixing, and intelligent scheduling.
Material storage and supply are the input ends of the entire system, following the basic principles of "categorized storage, closed conveying, and on-demand supply." Sand and gravel aggregates are stored in closed batching machine silos and discharged as needed through bottom arched gates or belt conveyors. Cement, fly ash, and other powdery materials are stored in closed steel silos and continuously and quantitatively conveyed by screw conveyors. Water and liquid admixtures are pumped from storage tanks to metering hoppers via pipelines. The supply of materials is not continuous and fully operational, but rather controlled by the metering system, employing a graded feeding mode of "fast feeding → slow feeding → inching replenishment," ensuring efficiency while reserving room for precision control. The anti-bridging device and level gauge that matched with the powder silo are auxiliary mechanisms to ensure continuous supply and prevent powder from bridging and interrupting the supply.
Dynamic metering is the core of the concrete batching plant's precision, and its principle goes far beyond simply "weighing." Aggregates are cumulatively metered using belt scales or statically metered using hopper scales, while powders and liquids are weighed using independent electronic hopper scales. The real technological difference lies in the dynamic drop compensation algorithm: there is a time difference between the material falling from the discharge port to the hopper. When the actual weight approaches the set value, the control system prematurely shuts off the feeding device, using the remaining material in the air to make up the final weight; this advance is the drop value. High-end equipment also has an automatic drop self-learning function, correcting the advance based on the actual error after each weighing, forming a closed-loop calibration, ensuring that the metering accuracy of powders is stable within ±1% and that of liquids within ±0.5%. The metering system also features automatic zero-point tracking to eliminate system errors caused by temperature drift and sensor creep.
Forced mixing is the core step in homogenizing the finished product. Mainstream twin-shaft mixers rely on convective shear mechanisms to achieve efficient mixing. Two parallel mixing shafts rotate in opposite directions, with staggered mixing blades on the shafts driving the material in three-dimensional motion—including radial tumbling along the cylinder, axial back-and-forth pushing, and mutual shearing and kneading between materials. This composite motion mode breaks through the material stratification dead zones of single-shaft mixing, achieving thorough and uniform mixing of cement, aggregates, water, and admixtures in a short time. Even special concrete with added fibers and silica fume can achieve good homogeneity. Longer mixing time is not necessarily better; it is set according to the formula grade and aggregate characteristics, precisely timed and controlled by the control system.
The intelligent control system is the central scheduling hub of the entire concrete batching plant, undertaking three major functions: formula management, timing control, and interlocking protection. After the operator selects the formula on the industrial control interface, the system automatically calls up the corresponding proportion parameters and triggers each process action sequentially according to predetermined logic, eliminating the need for manual step-by-step operation. The system also incorporates multiple safety interlocks: for example, material feeding is prohibited when the main unit is not started, the next batch of batching is prohibited if the unloading gate is not closed, and an automatic alarm and shutdown are triggered when metering exceeds tolerance, forming inherent safety protection. Some equipment is also equipped with a fault self-diagnosis module, which collects operating data such as current, pressure, and temperature in real time, and quickly locates the fault point when an anomaly occurs.
In short, the working essence of a concrete batching plant is a closed-loop system of "information-driven materials." Accuracy comes from the continuous calibration of the metering algorithm, efficiency comes from the time-sequential coordination of each unit, and stability comes from the full-link management of the control system. These three factors together determine the overall production capacity and finished product quality of the concrete batching plant.
Material storage and supply are the input ends of the entire system, following the basic principles of "categorized storage, closed conveying, and on-demand supply." Sand and gravel aggregates are stored in closed batching machine silos and discharged as needed through bottom arched gates or belt conveyors. Cement, fly ash, and other powdery materials are stored in closed steel silos and continuously and quantitatively conveyed by screw conveyors. Water and liquid admixtures are pumped from storage tanks to metering hoppers via pipelines. The supply of materials is not continuous and fully operational, but rather controlled by the metering system, employing a graded feeding mode of "fast feeding → slow feeding → inching replenishment," ensuring efficiency while reserving room for precision control. The anti-bridging device and level gauge that matched with the powder silo are auxiliary mechanisms to ensure continuous supply and prevent powder from bridging and interrupting the supply.
Dynamic metering is the core of the concrete batching plant's precision, and its principle goes far beyond simply "weighing." Aggregates are cumulatively metered using belt scales or statically metered using hopper scales, while powders and liquids are weighed using independent electronic hopper scales. The real technological difference lies in the dynamic drop compensation algorithm: there is a time difference between the material falling from the discharge port to the hopper. When the actual weight approaches the set value, the control system prematurely shuts off the feeding device, using the remaining material in the air to make up the final weight; this advance is the drop value. High-end equipment also has an automatic drop self-learning function, correcting the advance based on the actual error after each weighing, forming a closed-loop calibration, ensuring that the metering accuracy of powders is stable within ±1% and that of liquids within ±0.5%. The metering system also features automatic zero-point tracking to eliminate system errors caused by temperature drift and sensor creep.
Forced mixing is the core step in homogenizing the finished product. Mainstream twin-shaft mixers rely on convective shear mechanisms to achieve efficient mixing. Two parallel mixing shafts rotate in opposite directions, with staggered mixing blades on the shafts driving the material in three-dimensional motion—including radial tumbling along the cylinder, axial back-and-forth pushing, and mutual shearing and kneading between materials. This composite motion mode breaks through the material stratification dead zones of single-shaft mixing, achieving thorough and uniform mixing of cement, aggregates, water, and admixtures in a short time. Even special concrete with added fibers and silica fume can achieve good homogeneity. Longer mixing time is not necessarily better; it is set according to the formula grade and aggregate characteristics, precisely timed and controlled by the control system.
The intelligent control system is the central scheduling hub of the entire concrete batching plant, undertaking three major functions: formula management, timing control, and interlocking protection. After the operator selects the formula on the industrial control interface, the system automatically calls up the corresponding proportion parameters and triggers each process action sequentially according to predetermined logic, eliminating the need for manual step-by-step operation. The system also incorporates multiple safety interlocks: for example, material feeding is prohibited when the main unit is not started, the next batch of batching is prohibited if the unloading gate is not closed, and an automatic alarm and shutdown are triggered when metering exceeds tolerance, forming inherent safety protection. Some equipment is also equipped with a fault self-diagnosis module, which collects operating data such as current, pressure, and temperature in real time, and quickly locates the fault point when an anomaly occurs.
In short, the working essence of a concrete batching plant is a closed-loop system of "information-driven materials." Accuracy comes from the continuous calibration of the metering algorithm, efficiency comes from the time-sequential coordination of each unit, and stability comes from the full-link management of the control system. These three factors together determine the overall production capacity and finished product quality of the concrete batching plant.
A concrete batching plant is not simply a "large concrete mixer," but a continuous production system integrating material storage, dynamic metering, forced mixing, and logic control. Concrete batching plant working principle can be summarized as follows: Using a PLC control system as the central hub, it precisely schedules each unit according to a preset formula, completing the entire automated process from raw material storage to finished product output, achieving a synchronous closed loop of material and information flow. Understanding its operational logic requires breaking it down layer by layer from four levels: material supply, dynamic metering, forced mixing, and intelligent scheduling.
Material storage and supply are the input ends of the entire system, following the basic principles of "categorized storage, closed conveying, and on-demand supply." Sand and gravel aggregates are stored in closed batching machine silos and discharged as needed through bottom arched gates or belt conveyors. Cement, fly ash, and other powdery materials are stored in closed steel silos and continuously and quantitatively conveyed by screw conveyors. Water and liquid admixtures are pumped from storage tanks to metering hoppers via pipelines. The supply of materials is not continuous and fully operational, but rather controlled by the metering system, employing a graded feeding mode of "fast feeding → slow feeding → inching replenishment," ensuring efficiency while reserving room for precision control. The anti-bridging device and level gauge that matched with the powder silo are auxiliary mechanisms to ensure continuous supply and prevent powder from bridging and interrupting the supply.
Dynamic metering is the core of the concrete batching plant's precision, and its principle goes far beyond simply "weighing." Aggregates are cumulatively metered using belt scales or statically metered using hopper scales, while powders and liquids are weighed using independent electronic hopper scales. The real technological difference lies in the dynamic drop compensation algorithm: there is a time difference between the material falling from the discharge port to the hopper. When the actual weight approaches the set value, the control system prematurely shuts off the feeding device, using the remaining material in the air to make up the final weight; this advance is the drop value. High-end equipment also has an automatic drop self-learning function, correcting the advance based on the actual error after each weighing, forming a closed-loop calibration, ensuring that the metering accuracy of powders is stable within ±1% and that of liquids within ±0.5%. The metering system also features automatic zero-point tracking to eliminate system errors caused by temperature drift and sensor creep.
Forced mixing is the core step in homogenizing the finished product. Mainstream twin-shaft mixers rely on convective shear mechanisms to achieve efficient mixing. Two parallel mixing shafts rotate in opposite directions, with staggered mixing blades on the shafts driving the material in three-dimensional motion—including radial tumbling along the cylinder, axial back-and-forth pushing, and mutual shearing and kneading between materials. This composite motion mode breaks through the material stratification dead zones of single-shaft mixing, achieving thorough and uniform mixing of cement, aggregates, water, and admixtures in a short time. Even special concrete with added fibers and silica fume can achieve good homogeneity. Longer mixing time is not necessarily better; it is set according to the formula grade and aggregate characteristics, precisely timed and controlled by the control system.
The intelligent control system is the central scheduling hub of the entire concrete batching plant, undertaking three major functions: formula management, timing control, and interlocking protection. After the operator selects the formula on the industrial control interface, the system automatically calls up the corresponding proportion parameters and triggers each process action sequentially according to predetermined logic, eliminating the need for manual step-by-step operation. The system also incorporates multiple safety interlocks: for example, material feeding is prohibited when the main unit is not started, the next batch of batching is prohibited if the unloading gate is not closed, and an automatic alarm and shutdown are triggered when metering exceeds tolerance, forming inherent safety protection. Some equipment is also equipped with a fault self-diagnosis module, which collects operating data such as current, pressure, and temperature in real time, and quickly locates the fault point when an anomaly occurs.
In short, the working essence of a concrete batching plant is a closed-loop system of "information-driven materials." Accuracy comes from the continuous calibration of the metering algorithm, efficiency comes from the time-sequential coordination of each unit, and stability comes from the full-link management of the control system. These three factors together determine the overall production capacity and finished product quality of the concrete batching plant.
