China concrete plant for sale

 Select china concrete plant for sale is a great guarantee of high mixing efficiency, easy maintenance and long service life. To set up a concrete batching plant, the equipment is the top priority, so it is very important to choose the right and appropriate concrete plant equipment. Normally, the concrete batching plant equipment can be divided into small concrete plant HZS25 -50, medium-sized concrete plant HZS60-90, large-scale concrete plant equipment HZS120-240 according to the production volume, and various dual-machine stations. The concrete batching plant equipment is actually a set of equipment, which is a complete set of equipment composed of systems and structural components such as mixing, feeding, batching, discharging, storage, and control.

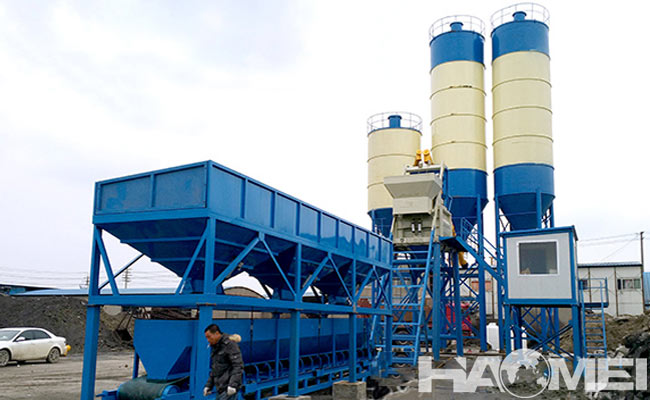

china concrete plant for sale

The following is a detailed introduction to its components of the china concrete plant for sale:
1, Mixing system
The mixing system of the concrete plant for sale is composed of a motor, a belt conveyor, a reducer, a mixing tank, a mixing device, a transmission system, and an oil supply system.
The mixing host adopts JS double-shaft forced concrete mixer, which is suitable for various types of concrete with aggregate particle size less than or equal to 100mm.

2, Feeding system
Aggregate supply system. This part consists of the feeding mechanism and weighing system of the concrete batching machine.
Powder supply system. This part is composed of cement silo and cement screw conveyor. The cement is directly transported from the cement silo to the cement weighing hopper via a screw conveyor for measurement.

3, Metering system
The concrete batching plant adopts the weighing system of the concrete batching machine, which is composed of a storage hopper, a weighing hopper and a transportation mechanism.
The powder, water, and admixture weighing systems are respectively composed of weighing hoppers and sensors, and the weighing control is completed by the control system.

4, Electric control system
The electrical control system of the china concrete plant is mainly composed of a strong current control with a console and an AC contactor as the core.
The entire system is installed in the control room. It can complete the automatic and semi-automatic control of the whole production process of batching, lifting, mixing and unloading.

5, Pneumatic system
The air source is supplied by an air compressor, and the filtered water and refueled air enters each branch through the air distribution bag.
The gas path of china concrete plant for sale is divided into parts such as aggregate feeding, mixer discharge, cement discharge, cement silo arch breaking, and admixture mixing.


For Price Plz Contact Whatsapp/Wechat: 0086 181 3788 9531

Or Email to nydia@concretebatchplant24.com
